 My Jeep - Evilwrangler Evilwrangler.com

TECH SPECS
1993 Wrangler YJ
Engine :

4.0L Fuel Injected I-6

Transmission :

5 Speed Manual AX15
Front Differential :
Dana 30 - Hardened
(EZ Locker 4.88)

Rear Differential :
Ford 8.8 (Eaton E-locker 4.88)
Transfer Case:
NP231J with SYE
Suspension :
6" SOA with RE Springs on 35" BFG Mud Terrains


UPGRADES
Click <bold> links for more info.
Suspension and Tires:

CEO Beadlocks and 35" BFG MT
    - Balanced with Airsoft Beads
    Spring Over Axle
    - RE 1.5" SOA Springs
    - JKS Shock Converters
    - TeraFlex Hi-Steer
    - Traction Bar

1" JKS budget motor mount lift

JKS 1.25" Body Lift

JKS Quicker Disconnects
    Extended Brake Lines
   - MORE Boomerang Shackles

Gears and Drivetrain:
    Ford 8.8 Swap
    - '98 Ford 8.8 rear axle
    - 31 spline, w/disc brakes
    - Re-gear to 4.88
    - Eaton E-Locker
    Dana 30 Rebuild
    - Yukon Hardened Axles
    - Yukon Superjoints
    (TJ Conversion Axles)
    - EZ Locker Front Dana 30

    Advance Adapters SYE
   - Tom Wood's HD CV Rear Driveshaft

   - PSTDS 2" Front Driveshaft

Armor and Recovery:

    Stock Cage with Rock Hard
    M.O.R.E front sport cage
    Toff Low Pressure Bed Liner
    Poison Spider Crusher Corners
    CEO Tube Fenders
    Warn Gas Tank Skid
    Shorty Tube Bumper Customization


- Teeth Bumper Mod
    CE Custom Winch Plate (w/ Teeth)


Shrockworks Rock Sliders
    CE Tow Hook Mounts
    Rear Bumper and Tire Carrier
    Hi-lift Jack and Mount

    Mile Marker 8000lb. Winch
    12 Volt Guy Internal Winch Control

Performance:

    Gibson Cat-back Exhaust

Communication:
    Wilson 3ft Antenna
    CB Install with CB Rack

Accessories:
    Daystar Poly Bump Stops
    RE Hand Throttle

   Chrome Gear Shift Knob
    Steering Column Security Collar
    Mountaineer Rack
    Fiberglass Upper Doors
    Rock Gear Frameless Top

   2003 TJ Mirrors

6" KC Daylighters
    - KC Lite Locks
    Tuffy Center Console
    - Pioneer MP3/CD Player
    Roller Fairlead License Bracket
    Bling Battery Terminals
    Olympic Safari Mirrors
    Roll Bar Strap Handles

Stage 1 items that have been replaced or discarded:

297 U-joint front shafts

4x4 Posi-lok Manual Axle Connect
    - Heavy Duty Shift Fork
    - Spicer U-Joints



Stock YJ Hardtop
   - Quick Release Hardware
   Axle Swap for 4.10's
   New Soft Top Hardware
   Security Wheel Locks

JKS Telescoping Track Bar
   33" BFG Mud Terrains and Rims
   - U-bolt Rear Yoke

   3.5"BDS Suspension Kit
   -
Extended Brake Lines
   - Doetsch Tech 3000 Shocks


Maintenance Performed:

   - Replaced Fuel Pump

   -
Rebuilt Manual Transmission
   - Repaired Clutch x2
   - Replaced all brake components
   - New front Rotors
     Rebuilt Engine

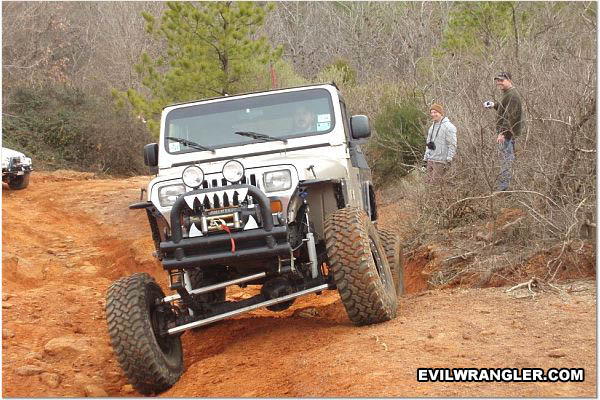

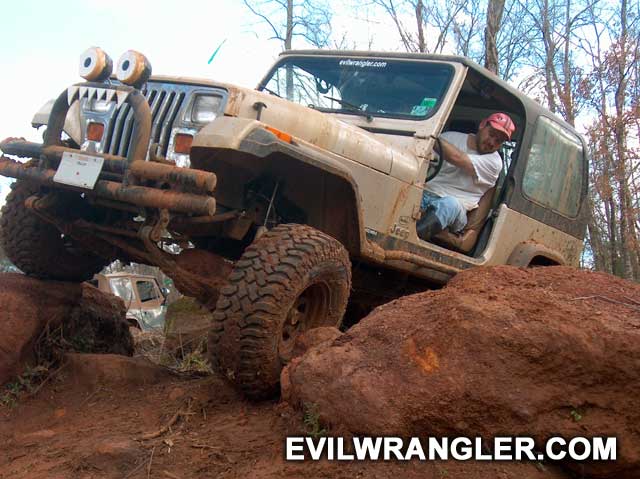

Stage 2
6" SOA on 35" Tires
click to enlarge

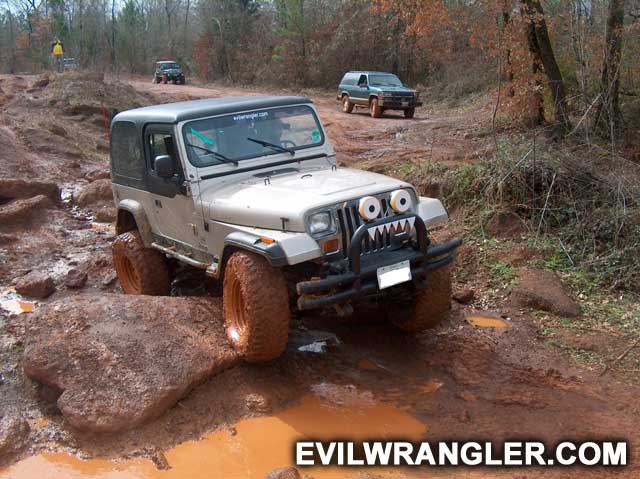

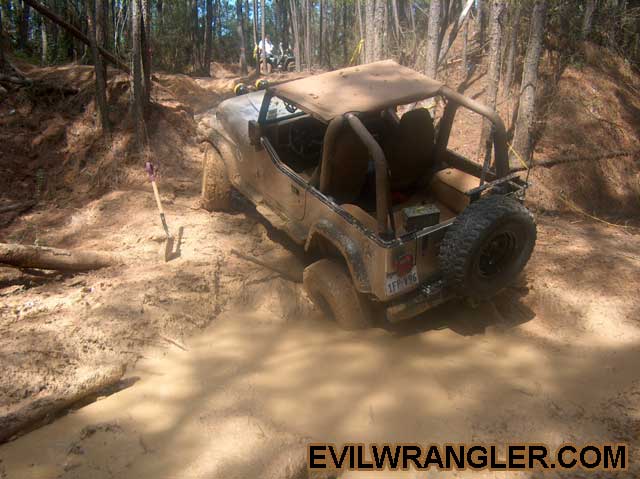

Stage 1
4" BDS Lift on 33" Tires
click to enlarge

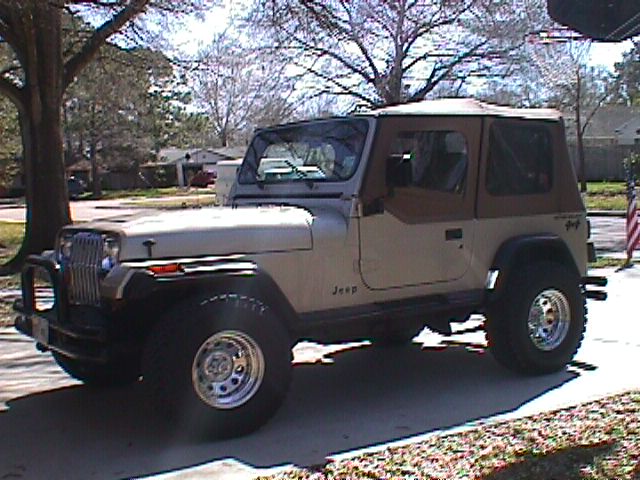

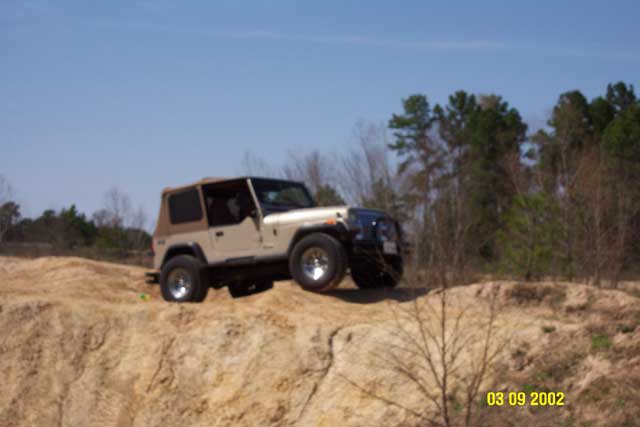

Stage 0
2" Bodylift on 32" Tires
click to enlarge
Pictured as purchased in 2002.

UPCOMING UPGRADES
 - Fix Rear Locker
 -
Seats and Harnesses
 - Power Distribution fuse block



Special thanks to
Creative Engineering
for helping me make my
imagination reality.
